The Invisible Siege on Vaccine Safety: Groundwater Contamination, Endotoxin Risks, and the Paradigm Shift to Atmospheric Water
ntroduction: The Criticality of the First Ingredient
In the ultra-high-stakes world of vaccine manufacturing, there is one raw material that surpasses all others in volume and critical importance: Water. It is the universal solvent, the cleaning agent, the steam source, and, most critically, the primary component of the final injectable product.
For biopharmaceutical engineers and facility directors, water quality isn’t just a spec sheet parameter; it is the bedrock of patient safety and regulatory compliance. Achieving Water for Injection (WFI) standards is a relentless battle against thermodynamics, chemistry, and microbiology.
For decades, the industry has relied on a seemingly infinite resource: groundwater. We drill, we pump, and then we build massive, energy-hungry cathedrals of filtration to torture that ground water into purity.
But the ground beneath our feet is changing. Aquifers are becoming stressed, depleted, and increasingly, a sink for the chemical and biological detritus of modern civilization. For facilities manufacturing life-saving vaccines, reliance on groundwater is no longer just an engineering challenge; it is an escalating risk management crisis.
This article takes a hard, technical look at the specific dangers lurking in groundwater—with an urgent emphasis on the difficult-to-destroy endotoxins that threaten vaccine batches. We will analyze the hidden economic and environmental costs of traditional purification and introduce the necessary paradigm shift: severing the connection to the ground and sourcing water from the cleanest aquifer on earth— the atmosphere.
Section 1: The Crisis Below – The Escalating Fragility of Groundwater Source
Groundwater was once considered a pristine source, naturally filtered by layers of soil and rock. That assumption is now dangerously outdated.
As global populations swell and industrial activity intensifies, subterranean water sources are under siege from two directions: depletion and contamination.
1.1 The Concentration Effect of Depletion
Many pharmaceutical hubs are located in water-stressed regions. As aquifers are over-drafted for municipal, agricultural, and industrial use, water tables drop. This depletion doesn’t just mean there is less water; it means the remaining water is often of poorer quality.
As water levels fall, concentrations of naturally occurring minerals (hardness, silica, arsenic) increase. Deeper wells often tap into ancient, brackish water, causing total dissolved solids (TDS) levels to spike unpredictably. A sudden doubling of feedwater TDS can overwhelm pretreatment reverse osmosis (RO) systems, leading to breakthrough and downstream contamination of polishing steps like Electrodeionization (EDI) or distillation units.
1.2 The Anthropogenic Cocktail
Far more concerning than natural minerals is the anthropogenic fingerprint on groundwater. Everything we release on the surface eventually migrates downward.
Agricultural Runoff: Nitrates, phosphates, and persistent pesticides seep into shallow aquifers used by many industrial parks.
Industrial Solvents: Trace amounts of volatile organic compounds (VOCs) and “forever chemicals” like PFAS (per- and polyfluoroalkyl substances) are increasingly being detected in groundwater globally. These compounds are notoriously difficult to remove and require expensive, high-maintenance activated carbon pre-treatment, which itself becomes a breeding ground for bacteria.
Emerging Contaminants: Pharmaceuticals, hormones, and personal care products flushed down drains are bypassing municipal treatment and entering the groundwater cycle.
For a standard manufacturing plant, these are headaches. For a vaccine facility requiring sterile WFI, they are potential catastrophes.
Section 2: The Stealth Threat in Pharma – Pathogens and the Endotoxin Nightmare
The primary focus of pharmaceutical water treatment is microbiology. While chemical purity is essential, biological contamination is immediate and deadly in an injectable product.
When sourced from groundwater, the bio-burden load is highly variable and often spikes after heavy rains or seismic activity disturbs the aquifer. While traditional pre-treatment aims to kill living bacteria, it often exacerbates the darker, more insidious problem: endotoxins.
2.1 The Difference Between Living and Dead Threats
Most facility engineers are comfortable dealing with viable bacteria (bioburden). You sanitize the loop, use UV lamps, and maintain continuous turbulent flow.
The greater challenge in vaccine manufacturing is Pyrogens, specifically Bacterial Endotoxins.
Endotoxins are lipopolysaccharides (LPS) that form the outer cell wall of Gram-negative bacteria (like E. coli, Pseudomonas, etc.). These bacteria thrive in groundwater, soil, and notoriously, in the pre-treatment stages of water systems (like carbon filters and softeners).
Here is the critical distinction: Endotoxins are not alive. They are the debris left behind when bacteria die or multiply.
Why Endotoxins are the Engineer’s Nightmare:
Heat Stability: Unlike living bacteria, you cannot simply boil endotoxins away. They remain stable at standard autoclaving temperatures (121°C). Destroying them via heat requires depyrogenation temperatures exceeding 250°C for extended periods—an incredibly energy-intensive process feasible only for glassware, not for bulk water storage.
Size and Filtration Evasion: Endotoxin molecules can aggregate into large micelles, but individual units are extremely small (down to 10,000 Daltons). They can pass through standard 0.2-micron sterilizing grade filters used to catch live bacteria.
The Consequences in Vaccines: If endotoxins enter an injectable vaccine, they trigger a severe, sometimes fatal, immune response in the patient—fever, shock, and organ failure. This is a “pyrogenic response.”
2.2 The Groundwater Connection to Endotoxin Spikes
Groundwater is naturally rich in Gram-negative bacteria. When an industrial facility pumps this water and subjects it to chlorination or other biocidal treatments at the intake, they successfully kill the bacteria.
However, in killing millions of bacteria simultaneously, the treatment process causes massive cell lysis, releasing a sudden, concentrated “bloom” of free endotoxins into the feedwater.
Traditional WFI generation systems (like vapor compression distillation or multi-effect stills) are designed to remove endotoxins through phase change. However, they are rated for a certain log-reduction. If the incoming feedwater from a contaminated groundwater source has an unprecedented spike in endotoxin load, it can challenge the distillation units to their breaking point.
Furthermore, any breach in pre-treatment RO membranes, or trace contamination in storage tanks prior to distillation, creates a persistent endotoxin issue that is incredibly difficult to trace and eradicate.
A vaccine batch testing positive for endotoxins above the USP limit is an immediate write-off. The financial loss is in the millions; the reputational damage is incalculable; the risk to patient supply chains is unacceptable.
Section 3: The Unsustainable Economics of Purifying Poison

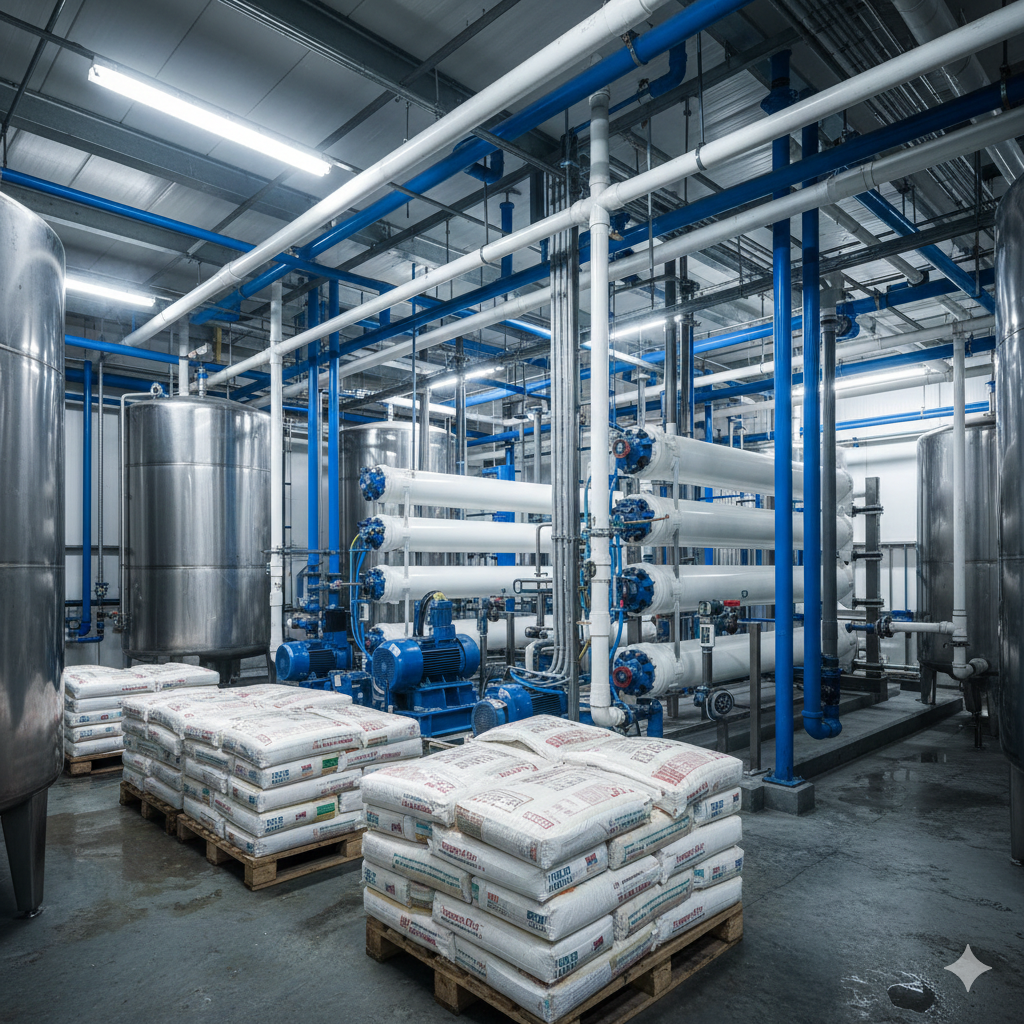

To turn increasingly contaminated groundwater into WFI, facilities are forced to build higher, more complex defensive walls. The total cost of ownership (TCO) of these traditional water systems is skyrocketing, hidden in energy bills, maintenance logs, and waste hauling manifests.
3.1 The Energy Penalty
The thermodynamics of purification are brutal.
Distillation is King, but costly: The gold standard for WFI is distillation because it reliably separates water from non-volatiles like endotoxins. However, boiling thousands of liters of water an hour requires enormous amounts of steam, usually generated by natural gas boilers. It is often the single largest energy consumer in a pharma facility.
High-Pressure Pumping: Before distillation, groundwater must go through RO. High TDS groundwater requires higher pressure pumps to overcome osmotic pressure, driving up electricity usage significantly.
3.2 The Maintenance and Chemical Treadmill
A fluctuating groundwater source means constant tweaking of the pre-treatment train.
Chemical Reliance: To protect RO membranes from scaling due to groundwater hardness, facilities consume vast quantities of salt for softeners or anti-scalant chemicals. To combat bio-growth, various biocides are used. To remove chlorine before the RO, sodium metabisulfite is injected. This is a massive chemical procurement and storage undertaking.
Membrane Fouling and Replacement: Groundwater rich in organics and colloids fouls RO membranes rapidly. This necessitates frequent Clean-In-Place (CIP) cycles using aggressive acids and caustics, which shortens membrane life and leads to expensive replacements and production downtime.
3.3 The Environmental Burden: The Reject Water Problem
Perhaps the most overlooked aspect of traditional water treatment is its inefficiency. To make pure water, you must waste water.
For every gallon of purified water produced via a standard RO setup operating on challenged groundwater, roughly 25% to 40% of the feed water becomes “reject” or concentrate stream.
This isn’t just water; it’s hazardous brine. It contains 100% of the contaminants removed from the product water, concentrated into a smaller volume, plus all the added anti-scalants and treatment chemicals.
High TDS Pollution: Discharging this high-salinity waste into municipal sewers is increasingly regulated and expensive. In some jurisdictions, it requires on-site evaporator crystallizers to achieve Zero Liquid Discharge (ZLD), adding another massive layer of CAPEX and OPEX.
The Water Footprint: In an era of water scarcity, wasting 40% of the water you pump just to clean the other 60% is environmentally indefensible.
Section 4: The Paradigm Shift – Atmospheric Water Generation (AWG)
If groundwater is becoming a reliability liability, what is the alternative?
The answer lies in changing the source entirely. The atmosphere contains an estimated 37.5 million billion gallons of water vapor. It is a replenishable, mobile aquifer that naturally bypasses terrestrial ground contamination.
At Advance Engineers, we are pioneering the integration of industrial-scale Atmospheric Water Generators (AWGs) into critical applications like vaccine manufacturing.
4.1 Bypassing the Ground: The Ultimate Pre-Treatment

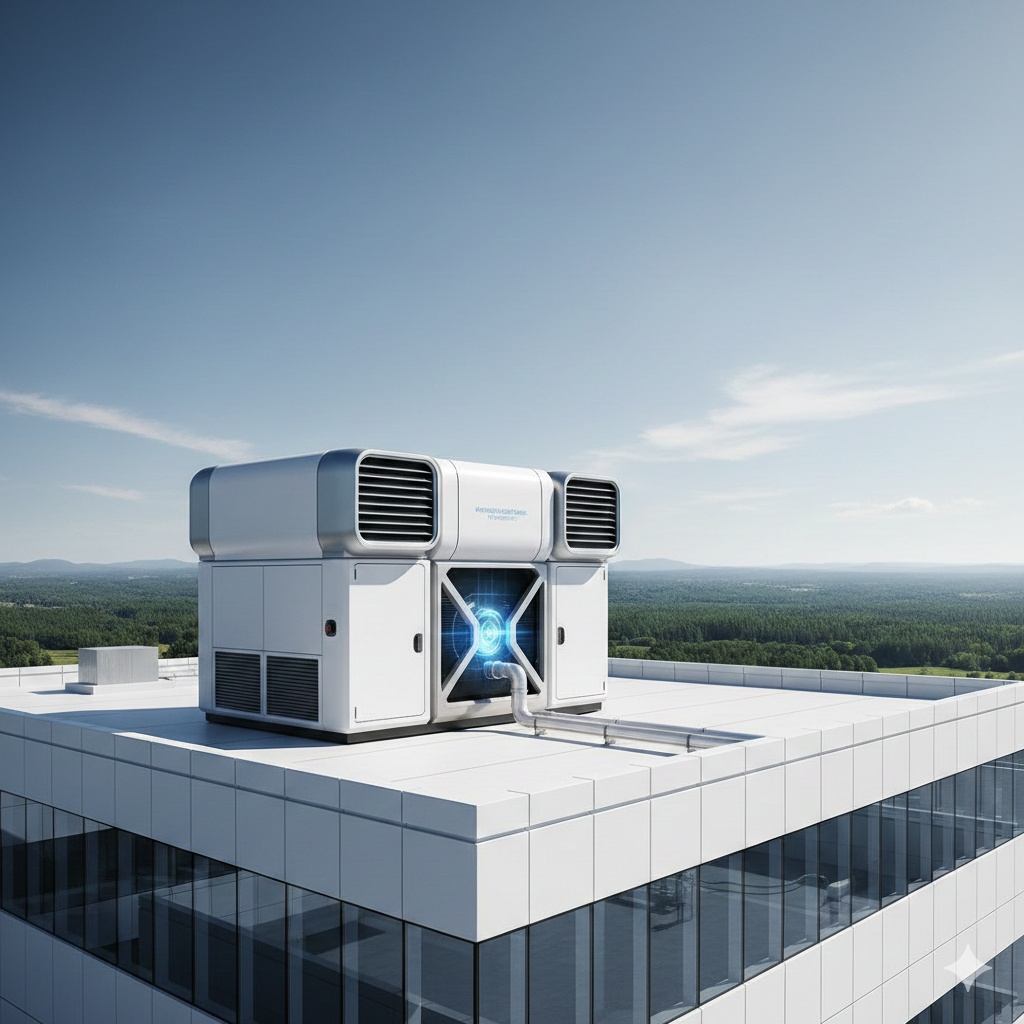

An AWG is essentially a highly sophisticated dehumidifier optimized for water production. It pulls in ambient air, filters it to remove particulates, passes it over chilled coils to condense the vapor into liquid water, and then subjects that water to immediate purification.
By sourcing from the air, we eliminate the primary vectors of risk discussed above:
No Agricultural Runoff: Air doesn’t contain nitrates or pesticides in meaningful quantities.
No Subterranean Mineral Spikes: The water starts with very low TDS (essentially distilled by nature).
Dramatically Lower Bio-burden: While air contains bacteria, the load is vastly lower and less variable than groundwater sources, and significantly lower in Gram-negative bacteria that cause endotoxin issues.
4.2 AWG as the Ideal Feed for WFI Systems
We are not suggesting AWG product water is injectable straight from the machine. WFI requires rigorous, validated distillation or membrane processes defined by USP/EP pharmacopeias.
However, AWG water is the perfect feed water for those WFI stills.
By providing a consistent, low-TDS, low-endotoxin feed stream to a Vapor Compression Distiller, you achieve:
Reduced Energy Consumption: The distiller works less hard, reducing scaling and blowdown frequency.
Simplified Pre-treatment: You can potentially eliminate water softeners, massive carbon beds, and primary RO passes, shrinking the facility footprint and removing areas where bacteria breed.
Risk Mitigation: You remove the “spike variable.” You no longer have to worry about what a heavy rainfall event did to the aquifer five miles away. The input quality is stable.
Section 5: Sustainability and the Future of Our Generations
Adopting AWG technology is not just an engineering decision; it is a statement of corporate values.
Pharmaceutical companies have a dual obligation: to provide life-saving medicines today, and to ensure a habitable world for the patients of tomorrow.
Continuing to exploit stressed groundwater aquifers for industrial processes, while simultaneously polluting water systems with high-TDS reject streams, is antithetical to modern Environmental, Social, and Governance (ESG) goals.
By adopting Atmospheric Water Generation, a facility:
Decouples growth from local water stress: You become water-independent, ensuring business continuity even during droughts or municipal water crises.
Eliminates reject water pollution: AWG produces no brine discharge.
Demonstrates leadership: It signals a commitment to innovative, sustainable technologies that protect our shared natural resources.
This is about securing the future of manufacturing and fulfilling our moral obligation to leave a water-secure planet for the next generation.
The Final Call to Action
The risks of relying on groundwater for vaccine manufacturing are no longer theoretical; they are financial, operational, and ethical ticking time bombs. The threat of endotoxin contamination creates an unacceptable level of risk in an industry where safety is paramount.
The old ways of brute-forcing purity through massive chemical and energy expenditure are becoming obsolete.
Ideally, the purest final product should start with the purest raw material. Air is that material.
Advance Engineers is ready to help your facility assess the feasibility of industrial Atmospheric Water Generation. We can model the energy savings, the risk reduction, and the sustainability benefits of shifting your feedwater source from the ground to the sky.
Stop managing groundwater crises. Start generating pure water security.
Discover how AWG can revolutionize your critical utility strategy. Visit our detailed AWG solutions page to learn more:
Indian manufacturing stands at a decisive crossroads.
On one side is the familiar comfort of labour-driven production—people on shop floors, manual inspections, supervisor-dependent quality, overtime firefighting, and productivity that fluctuates with every shift change.
On the other side is an automated future—factories that run 24/7, deliver predictable quality, generate real-time data, and scale without chaos.
The image you see tells this story in a single frame: Manual Labour vs Automated Future.
The question staring Indian industry in the face is no longer whether automation will happen.
The real question is:
Can Indian industry afford to wait any longer?
The Illusion of Cheap Labour
For decades, Indian manufacturing has leaned heavily on one advantage: low-cost labour.
It worked—until it didn’t.
Today, the so-called “cheap labour” model hides massive invisible costs:
❌ Quality rework and rejection losses
❌ Inconsistent output between shifts
❌ Supervisor dependency
❌ High attrition and retraining cycles
❌ Safety incidents and downtime
❌ Production planning uncertainty
What looks economical on paper becomes expensive on the balance sheet.
In many factories:
Output depends more on who is on the shift than on what system is running
Quality is inspected after defects are created
Maintenance is reactive, not predictive
This is not a labour problem. This is a system design problem.
Automation Is Not About Replacing People
One of the biggest myths holding Indian industry back is fear.
If you drive through the industrial corridors of Baddi, Nalagarh, or Paonta Sahib—the beating heart of India’s pharmaceutical manufacturing—you will see world-class facilities churning out generics for the global market. Yet, inside the conference rooms of these massive plants, one acronym generates more anxiety than any production target or supply chain delay: USFDA.
For Indian pharmaceutical exporters, the United States Food and Drug Administration (USFDA) audits are the ultimate litmus test. In recent years, the focus of these audits has shifted aggressively from physical hygiene to Data Integrity.
Gone are the days when a wet signature on a paper batch record was enough. Today, your PLC (Programmable Logic Controller) and SCADA (Supervisory Control and Data Acquisition) systems are the primary witnesses to your process quality. If an auditor asks, “Who changed this sterilization setpoint at 3:00 AM?” and your HMI cannot provide a definitive, tamper-proof answer, you are staring down the barrel of a Form 483 observation or, worse, a Warning Letter.
This is where 21 CFR Part 11 comes in.
To the uninitiated, it reads like dry legal text. To the experienced Automation Engineer, it is the blueprint for building a credible, export-ready facility.
At Advance Engineers, we have spent years working with pharma majors in the Chandigarh and Himachal region, helping them bridge the gap between engineering reality and regulatory requirements. We know that compliance isn’t just about buying “Part 11 compliant software”; it’s about how that software is engineered, configured, and validated.
This comprehensive guide is designed for the Plant Head, the QA Manager, and the Automation Engineer. We will strip away the legalese and explore the practical, nuts-and-bolts implementation of 21 CFR Part 11 in your industrial automation systems.
Part 1: De-mystifying the Regulation
Title 21 CFR Part 11 is the FDA’s regulation regarding Electronic Records and Electronic Signatures (ERES).
In simple terms, it states that electronic records (data stored in your SCADA/Historian) and electronic signatures (approvals done via login) are considered just as legally binding and valid as paper records and handwritten signatures—provided specific conditions are met.
The regulation is divided into two main subparts relevant to us:
Subpart B – Electronic Records: How you create, maintain, and archive data securely.
Subpart C – Electronic Signatures: How you ensure that a specific action is irrefutably linked to a specific human being.
Why is this hard? Because standard industrial automation was originally designed for efficiency, not security. A standard HMI lets anyone walk up, press “Start,” and walk away. A standard CSV file export lets anyone open it in Excel, change a value from 80°C to 121°C, save it, and no one would ever know. Part 11 forces us to lock these doors.
Part 2: The Core Pillar—Data Integrity and ALCOA+
Before diving into the PLC logic, we must understand the philosophy behind the rule: ALCOA+. This is the framework auditors use to judge your system. If your automation solution doesn’t satisfy these principles, it is not compliant.
A – Attributable: Every piece of data must be traced back to the person or system that created it. (No generic “Operator” logins).
L – Legible: The data must be readable and permanent throughout its lifecycle.
C – Contemporaneous: Data must be recorded at the time the event occurred. (No back-dating logs).
O – Original: The first capture of data is the source of truth.
A – Accurate: The data must be error-free and unaltered.
+ (Plus): Complete, Consistent, Enduring, and Available.
At Advance Engineers, when we design a SCADA architecture for a Sterile Injectable line or an OSD (Oral Solid Dosage) plant, we essentially build a “Digital Chain of Custody” that satisfies ALCOA+ at every step.
Part 3: Engineering Compliance – The Technical Implementation
This section details how we translate these regulations into actual engineering features within platforms like Siemens WinCC, Rockwell FactoryTalk View SE, or Wonderware System Platform.
1. STRICT Access Control & User Management
The days of a shared HMI password written on a sticky note are over.
Individual Accounts: Every operator, supervisor, and maintenance engineer must have a unique User ID.
Role-Based Access Control (RBAC): We configure security groups.
Operators can View process, Acknowledge alarms, and Start batches.
Supervisors can Change Setpoints and Modify Recipes.
Maintenance can Access PID tuning parameters.
Administrators can Manage users (but NOT run the process—segregation of duties).
Password Aging & Complexity: The SCADA system must force password changes every 30-90 days. It must reject simple passwords and lock the account after 3 failed attempts.
Auto-Logout: The system must automatically log out an inactive user after a set time (e.g., 10 minutes) to prevent unauthorized access if an operator walks away.
2. The “Black Box”: Audit Trails
This is the single most critical feature for an auditor. An Audit Trail is a secure, immutable chronological record of who did what, when, and why.
A compliant Audit Trail in a SCADA system must capture:
Timestamp: Date and Time (synced to a secure NTP server).
User ID: Who made the change?
Action: What happened? (e.g., “Setpoint Change”).
Variable Name: Which tag was affected? (e.g., Autoclave_Temp_SP).
Old Value: What was it before? (e.g., “121.0”).
New Value: What is it now? (e.g., “121.5”).
Reason for Change: This is crucial. The system must force the user to select a reason from a pre-defined list (e.g., “Process Deviation,” “Calibration,” “Batch Change”) or type a manual comment before the value is accepted.
The Advance Engineers Standard: We configure Audit Trails to be “Read-Only” for everyone. Even the Administrator should not be able to delete or edit the audit logs. They are stored in encrypted SQL databases or tamper-evident proprietary file formats.
3. Electronic Signatures (The “Double Handshake”)
For critical actions—like starting a batch, approving a recipe, or acknowledging a critical alarm—a simple click is not enough. The system must demand an Electronic Signature.
This typically involves a pop-up window requiring two distinct identification components:
The User ID (Public).
The Password (Private).
This action essentially says, “I, John Doe, certify that I am authorizing this action at this time.” In our systems, this signature is permanently linked to the record of that batch.
4. Recipe Management and Version Control
Inconsistent batches are a quality nightmare. In a Part 11 compliant system, “Recipes” (the set of parameters defining a product) are locked down tight.
Version Control: If a recipe is modified, the system creates a new version (e.g., Version 1.0 -> 1.1).
Approval Workflow: A recipe created by a Junior Engineer cannot be used in production until it is electronically signed and “Approved” by a QA Manager.
Verification: When a batch starts, the PLC verifies that the loaded recipe matches the checksum of the approved recipe in the database, ensuring no parameters were tweaked in the background.
Part 4: The Danger of “Open Systems” and Data Storage
A common pitfall we see in older plants is the reliance on “Flat Files” like CSV or TXT files for data logging.
The Scenario: A SCADA system logs temperature data to a CSV file on the C: drive. At the end of the shift, the supervisor copies it to a USB stick.
The Compliance Violation: A user could open that CSV file, change a few temperature readings that were out of spec, save the file, and then present it to QA. There is no trace of the alteration. This is a critical data integrity failure.
The Solution: We implement Database-Centric Architectures.
SQL Server with Security: Data is logged directly into an SQL database. The database is password protected, and permissions are set so that only the SCADA Service Account can Write data. Human users have Read-Only access.
Encrypted Historians: We use specialized Historian software (like OSIsoft PI, FactoryTalk Historian, or Wonderware Historian) that compresses and encrypts data. It is mathematically impossible to modify a historical value without breaking the file’s integrity signature.
Part 5: Computer System Validation (CSV) and GAMP 5
Buying compliant software is only 50% of the battle. The other 50% is proving that it works. This is called Computer System Validation (CSV).
The pharmaceutical industry follows the GAMP 5 (Good Automated Manufacturing Practice) guide using the V-Model.
At Advance Engineers, we don’t just hand over the code; we provide the full documentation stack required for your validation master plan:
URS (User Requirement Specification): Helping you define exactly what the system must do.
FS/DS (Functional & Design Specifications): Documenting how our code meets your URS.
IQ (Installation Qualification): Verifying the hardware is installed correctly and the software is the correct version.
OQ (Operational Qualification): Testing every alarm, interlock, and security feature. (e.g., We deliberately try to log in with a wrong password to prove the system locks us out).
PQ (Performance Qualification): Verifying the system works under real production load.
Traceability Matrix: A document linking every Requirement -> Design Element -> Test Case.
Without this paperwork, your sophisticated SCADA system is just a “black box” to an auditor.
Part 6: Retrofitting Legacy Systems for Compliance
Many plants in India are running older machines that work perfectly mechanically but lack digital compliance.
Do you need to throw away the machine? No.
We specialize in “Compliance Retrofits.” We can install a “SCADA Overlay” or a “Data Integrity Gateway.”
We leave the existing PLC logic for machine control largely untouched (to minimize re-validation of the process).
We add a new, modern HMI/SCADA layer on top that handles User Management, Audit Trails, and Reporting.
We disable the local operator controls on the old panel and route all critical inputs through the compliant HMI.
This approach saves you the cost of a new machine while bringing you up to 21 CFR Part 11 standards.
Part 7: The Advance Engineers Advantage
Why trust Advance Engineers with your compliance?
Local Presence, Global Standards: Based in Chandigarh, we are minutes away from the major pharma hubs of Punjab and Himachal. We understand the local operational challenges but engineer to US/EU standards.
Multi-Platform Expertise: Whether your plant runs on Siemens, Rockwell, Mitsubishi, or Schneider, we have the in-house drivers and expertise to unify them into a compliant reporting structure.
IT/OT Convergence: We don’t just know PLCs; we know Databases, Networking, and Server Security. We bridge the gap between your shop floor and your IT department.
Conclusion: Compliance is a Culture, Not Just Code
21 CFR Part 11 is often viewed as a burden. However, when implemented correctly, it is a tool for excellence.
A compliant system doesn’t just satisfy an auditor; it gives you confidence.
Confidence that your batch records are accurate.
Confidence that your recipes are followed exactly.
Confidence that if a failure occurs, you can trace the root cause instantly.
In the high-stakes world of pharmaceuticals, “Data Integrity” is synonymous with “Product Safety.” There is no room for ambiguity.
Don’t let your next audit be a source of fear. Turn your automation data into your strongest asset.
Call to Action
Is Your Facility Audit-Ready?
Don’t wait for a Form 483 to reveal gaps in your data integrity.
At Advance Engineers, we offer a comprehensive Data Integrity Audit. Our experts will review your existing automation systems, identify compliance risks, and propose a practical roadmap to full 21 CFR Part 11 compliance.
Introduction: The Silent Threat on Your Factory Floor
Walk into many established manufacturing plants across India—from the textile mills of Ludhiana to the pharmaceutical hubs of Baddi and the automotive ancillary units around Chandigarh—and you’ll find a common, silent hero. In a corner of a control room, inside a dusty panel, a Programmable Logic Controller (PLC) has been faithfully executing its logic for 15, 20, perhaps even 25 years. Its corresponding Supervisory Control and Data Acquisition (SCADA) system runs on a PC with an operating system that Microsoft stopped supporting a decade ago.
The prevailing philosophy is simple and, on the surface, prudent: “If it ain’t broke, don’t fix it.”
This mindset views automation upgrades as an unnecessary expense, a disruption to production that offers little tangible return. Why replace a Siemens S7-300 or an Allen-Bradley SLC 500 that’s still blinking its green “RUN” light?
At Advance Engineers, we understand this perspective. We’ve spent over a decade working side-by-side with plant managers and maintenance teams. We know the pressure to keep costs down and production up. But we also know the uncomfortable truth that lies beneath the surface of a legacy system.
The “if it ain’t broke” philosophy is a dangerous illusion. Your legacy system is breaking; it’s just doing so in ways that aren’t immediately obvious—until the day it fails catastrophically. The true cost of keeping a legacy system isn’t zero; it’s a mounting debt of risk that you will eventually have to pay, often at the worst possible moment.
This blog post is a deep dive into the hidden costs of legacy automation. We will move beyond the fear-mongering and provide a clear, technically sound, and business-focused argument for why planning a migration strategy now is the most responsible decision you can make for your plant’s future. We’ll explore the technical pitfalls, build the business case for modernization, and outline a practical, phased approach to upgrading your control systems without bringing your plant to a standstill.
Part 1: The Three Pillars of Legacy Risk
A legacy system is generally defined as one that is no longer available for purchase, is no longer supported by the manufacturer, or cannot run on modern operating systems. The risk it poses can be broken down into three main categories.
1. The Hardware Obsolescence Trap: Searching for Unicorns
The most immediate and tangible threat is hardware failure. Electronic components have a finite lifespan. Capacitors dry out, solder joints degrade, and power supplies fail. When a 20-year-old PLC CPU or a specialized I/O card dies, you cannot simply order a new one from the manufacturer.
You are forced into the grey market. You’re scouring eBay, calling obscure surplus vendors, or hoping a contact in another plant has a spare gathering dust on a shelf. The cost of these “refurbished” parts is often astronomically higher than their original list price—sometimes 500% to 1,000% more.
And what are you buying? A component of unknown history. Was it pulled from a working machine, or was it subjected to voltage spikes? You have no way of knowing. You are paying a premium for an unreliable part to fix a critical failure, all while your production line stands still.
Consider the cost of downtime in your facility. Is it ₹50,000 per hour? ₹2 Lakhs? More? A multi-day outage while you hunt for a rare processor card can easily wipe out an entire year’s maintenance budget.
2. The “Brain Drain” and Support Void
The human element is just as critical as the hardware. The engineers and technicians who originally installed and programmed your legacy systems are retiring. They carry with them decades of tribal knowledge—the intuitive understanding of the system’s quirks, the undocumented workarounds, the “ghosts in the machine.”
The new generation of controls engineers is trained on modern platforms like TIA Portal, Studio 5000, and web-based SCADA systems. Asking a young engineer to troubleshoot a PLC-5 program using DOS-based software is like asking a modern app developer to write code on punch cards. It’s inefficient, frustrating, and prone to error.
Furthermore, vendor support for these systems is non-existent. If you encounter a complex software bug or a communication issue, there is no hotline to call. You are on your own.
3. The Cybersecurity Sieve
In the era of Industry 4.0, connectivity is king. But connecting a Windows XP-based SCADA machine to your plant network is like leaving your front door wide open in a high-crime neighborhood.
Legacy operating systems have countless unpatched security vulnerabilities. They are easy targets for malware, ransomware, and malicious actors. A single infected USB drive plugged into an old HMI can compromise your entire network, leading to data theft, loss of process control, or a complete encryption of your servers with a ransom demand.
Modern systems are built with “security by design,” featuring user authentication, encrypted communications, and role-based access control. Legacy systems were built for a world where “air-gapping” was the only security measure—a measure that is practically impossible to maintain in today’s connected manufacturing environment.
Part 2: The Business Case for Modernization (Beyond Avoiding Disaster)
The argument for upgrading isn’t just about avoiding a negative; it’s about gaining positives. A modern control system is a platform for growth and efficiency.
1. Unlocking Process Visibility with Modern SCADA
Old SCADA systems were essentially digital mimic panels. They showed you if a pump was on or off, a tank level, and maybe a simple trend graph.
Modern SCADA platforms, like those we deploy at Advance Engineers, are powerful data hubs. They offer:
High-Performance HMI Graphics: Designed for immediate situational awareness, helping operators spot abnormal conditions before they become alarms.
Historian & Analytics: Instead of just logging data, modern systems can analyze it. You can correlate batch quality with process parameters, identify micro-stoppages, and calculate Overall Equipment Effectiveness (OEE) in real-time.
Web & Mobile Access: Plant managers can monitor critical KPIs from their smartphones, tablet, or laptop, anywhere in the world, via secure web clients.
2. Enhanced Diagnostics and Reduced Mean Time To Repair (MTTR)
When a legacy machine stops, the troubleshooting process is often manual and tedious. A technician has to grab a multimeter, open panels, trace wires, and hook up a laptop to look at ladder logic.
Modern PLCs and devices offer rich diagnostic data directly on the HMI. A drive fault isn’t just a generic red light; the HMI tells you exactly what happened: “VFD-101 Overcurrent Fault.” The PLC code can be structured with built-in alarm handling that points the operator directly to the root cause, slashing downtime from hours to minutes.
3. Future-Proofing and Scalability
Your plant is not static. You add new product lines, expand capacity, and integrate new technologies. A legacy control system is a bottleneck to this growth. Adding a new station to an old PLC-5 network or integrating a modern robot with an old S7-300 can be a nightmare of compatibility issues and custom communication drivers.
Modern controllers like the Siemens S7-1500 or Allen-Bradley ControlLogix are designed for scalability. They support open standard protocols like OPC UA, Modbus TCP, and EtherNet/IP, making integration with new machinery, MES (Manufacturing Execution Systems), and ERP systems seamless. You are building a foundation that will support your plant for the next 20 years.
Part 3: The Advance Engineers Approach to Low-Risk Migration
The biggest fear holding back migration projects is the risk of the upgrade itself. “What if the new system doesn’t work? What if we’re down for weeks during the changeover?”
At Advance Engineers, we specialize in risk-mitigated migration. We don’t just “rip and replace.” We follow a structured, phased approach designed to ensure zero unplanned downtime.
Phase 1: The Comprehensive Audit and Front-End Engineering Design (FEED)
We start by understanding what you have. This isn’t just a list of part numbers. We perform a deep dive:
Hardware Audit: Documenting every PLC, I/O card, drive, HMI, and communication module. We assess their lifecycle status and availability of spares.
Software Audit: We upload the current running program from the PLC. Crucially, we don’t just rely on the last saved copy on your server, which is often outdated. We analyze the code structure, identify complex algorithms, communication blocks, and undocumented forcing.
Functional Specification: We work with your operators and process engineers to document how the machine actually works, not just how it was designed to work 20 years ago. This is where we capture the tribal knowledge.
Risk Assessment: We identify critical process steps, safety interlocks, and potential failure points during migration.
This phase culminates in a detailed FEED report, outlining the new hardware architecture, the migration strategy, a project timeline, and a fixed cost.
Phase 2: Offline Engineering and Simulation
This is where 80% of the work happens, and it all takes place away from your production line.
Code Conversion & Re-engineering: We use automated tools to convert the base logic (e.g., from S5 to S7), but a human engineer reviews and re-writes critical sections. We don’t just convert “spaghetti code”; we structure it according to modern standards like ISA-88 for batch control, making it readable and maintainable.
SCADA Development: We build the new SCADA screens, incorporating modern high-performance HMI principles while ensuring familiarity for your operators so the learning curve is gentle.
The “Digital Twin” Simulation: Before we touch your live system, we test the new PLC code and SCADA against a simulation of your process. We verify interlocks, alarm handling, sequences, and communication paths in a safe, virtual environment. This step is critical for catching 95% of bugs before commissioning.
Phase 3: Phased Implementation and Commissioning
We rarely recommend a “big bang” cutover over a single weekend. Instead, we prefer a phased approach that minimizes risk.
Parallel Operation Strategy: For critical processes, we can install the new PLC alongside the old one. We use gateway devices to map the old I/O to the new processor. The new PLC runs in “shadow mode,” reading inputs and executing logic, but its outputs are disabled. We compare its behavior to the legacy system in real-time to validate performance.
Station-by-Station Migration: In a multi-station assembly line, we can migrate one station at a time, during scheduled maintenance windows, proving each section before moving to the next.
The Final Cutover: When confidence is high, we perform the final switch. Because of the extensive simulation, this is often as simple as moving I/O connectors to new terminal blocks and enabling the outputs on the new PLC.
Phase 4: Training and Support
A new system is useless if your team can’t use it. We provide:
Operator Training: Hands-on training on the new HMI/SCADA, focusing on how to run the process, handle alarms, and perform basic troubleshooting.
Maintenance Training: Deep-dive training for your controls team on the new PLC hardware, software (e.g., TIA Portal), how to go online, monitor logic, and force I/O safely.
Post-Commissioning Support: We don’t just disappear. We provide on-site support during initial production runs and remote support thereafter to address any teething issues.
Specific Migration Scenarios We Handle
Siemens S5 to S7-1500: A very common and critical upgrade. We handle the complex conversion of S5’s statement list (STL) and absolute addressing to the structured, symbolic tagging of the S7-1500 world, along with replacing PROFIBUS DP with PROFINET.
Allen-Bradley PLC-5/SLC 500 to ControlLogix/CompactLogix: We utilize Rockwell’s migration tools and our own expertise to convert ladder logic and leverage the power of the Logix platform’s tag-based architecture. We can often reuse existing 1771 or 1746 I/O racks in the first phase to reduce initial wiring costs.
Legacy SCADA (e.g., older WinCC, Wonderware, RSView32) to Modern Platforms: We migrate your graphics, alarm databases, and historical data to modern, web-enabled platforms like Ignition, WinCC Unified, or FactoryTalk View SE.
Conclusion: The Choice is Yours—Plan or Panic?
The question is not if you will have to replace your legacy automation systems, but when and how.
You can wait for a catastrophic failure to force your hand. This path guarantees maximum downtime, premium pricing for emergency parts and labor, and immense stress on your entire organization. It’s management by panic.
Or, you can choose the path of planned modernization. This path puts you in control. It allows you to budget for the project, schedule it during planned shutdowns, and execute it with a defined scope and minimized risk. It turns a potential disaster into a strategic initiative that improves your plant’s reliability, efficiency, and competitiveness.
At Advance Engineers, we are more than just system integrators; we are your partners in this critical transition. We have the deep technical expertise in both legacy and modern platforms, combined with a project management methodology designed for the realities of a 24/7 manufacturing environment.
Don’t let an obsolete controller dictate your plant’s future. Take control today.
Are you sitting on a legacy automation time bomb? Let’s defuse it together.
Contact Advance Engineers today for a no-obligation consultation. We can perform an initial audit of your installed base, help you assess your risk, and outline a preliminary roadmap for a phased, low-risk migration.
Schedule a Meeting with Our Automation Migration Experts and secure your plant’s future. https://go.aecl.in/MSBMEETING
Introduction: Navigating the “Internet of Things” Jungle
“IoT” is perhaps the most overused buzzword in manufacturing today. For a plant manager in Ludhiana or a process engineer in Baddi, the term often conjures vague images of iPads controlling conveyor belts. But in reality, Industrial IoT (IIoT) is about one specific goal: Data Granularity.
The difference between a standard automation system and an IIoT system is simple.
Standard System: Tells you the motor is running.
IIoT System: Tells you the motor is running at 45°C, vibrating at 3mm/s, and consuming 12.5 Amps.
However, the market is flooded with gadgets ranging from ₹500 Wi-Fi chips to ₹5,00,000 Edge Controllers. How do you select the right architecture?
At Advance Engineers, we believe the selection process shouldn’t start with the “Cloud”; it must start at the “Sensor.” This guide breaks down the selection hierarchy from basic connectivity to high-end enterprise integration.
Level 1: The Foundation – Field Connectivity (Basic to Smart)
Before you can analyze data, you must capture it. The selection of your field devices determines the quality of your data.
The Old Way: Analog (4-20mA) & Digital I/O
What it is: The industry standard for decades. A sensor sends a simple voltage or current signal to the PLC.
Pros: Extremely robust, simple to troubleshoot.
Cons: It is “dumb” communication. If a wire breaks or a lens gets dirty, the signal just drops to zero. You get data, but no diagnostics.
When to select: For simple, non-critical status checks (e.g., tank level, door open/close) where advanced analytics aren’t needed.

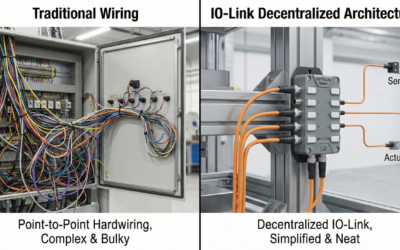

The Upgrade: IO-Link (The “USB” of Automation)
What it is: A point-to-point communication protocol that uses the same standard 3-wire cables but transmits digital data packets.
Why select it: This is the entry point for IIoT. An IO-Link photo-eye doesn’t just tell you “Object Detected”; it tells you “Signal Strength Weak (Lens Dirty)” or “Sensor Overheating.”
Advance Engineers Recommendation: For any new machine build, specify IO-Link masters. It minimizes cabling costs and maximizes diagnostic visibility without needing a high-end IT infrastructure.
Level 2: The Gateway – Getting Data Out of the Machine
Once the data is in the PLC or local sensor network, how do we move it? This is where the “Communication” layer comes in.
Basic: Serial to Ethernet Gateways
Technology: Modbus RTU (RS485) to Modbus TCP.
Application: Ideal for retrofitting older energy meters or VFDs that only speak serial languages.
Selection Criteria: Choose this if you are budget-constrained and simply need to log basic parameters (like Energy kWh) once every minute.
Mid-Range: Protocol Converters (The “Translator”)
Technology: Converting Profinet/EthernetIP to a neutral format.
Application: Your machine runs on Siemens (Profinet), but your upper-level software speaks Allen Bradley (Ethernet/IP).
Selection Criteria: Essential for mixed-vendor plants. Look for gateways that support OPC UA, as this creates a secure, standardized bridge for data.

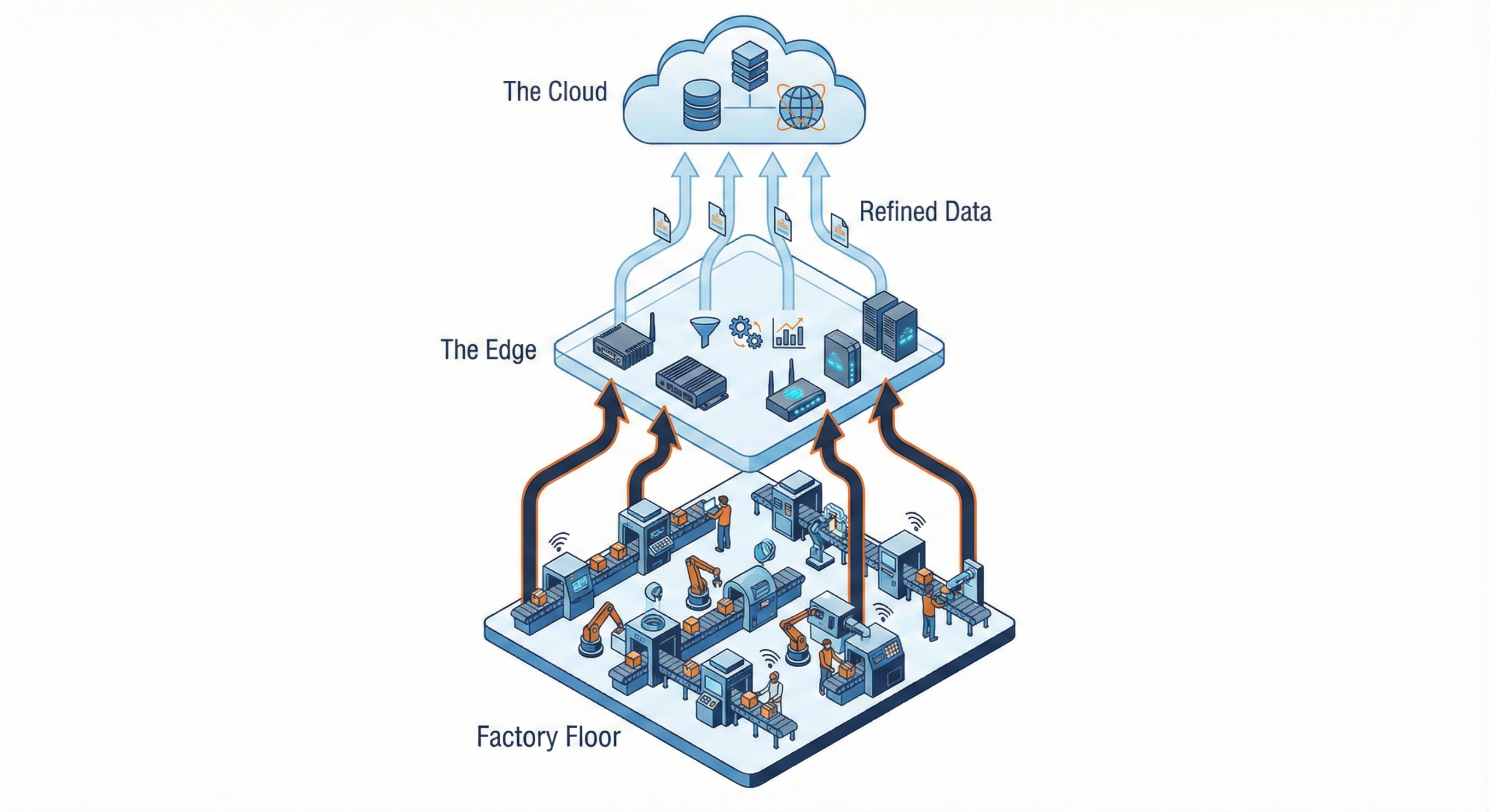

High-End: Edge Controllers
Technology: Industrial PCs (IPCs) or Linux-based Controllers (e.g., Raspberry Pi Compute Module Industrial versions, Siemens Industrial Edge).
Application: Running logic and data processing simultaneously.
Why select it: If you need to process data before sending it (e.g., analyzing vibration capabilities at 10,000 Hz to detect bearing failure), a simple gateway will crash. You need an Edge Controller to “crunch” the numbers locally and only send the result (“Bearing OK”) to the server.

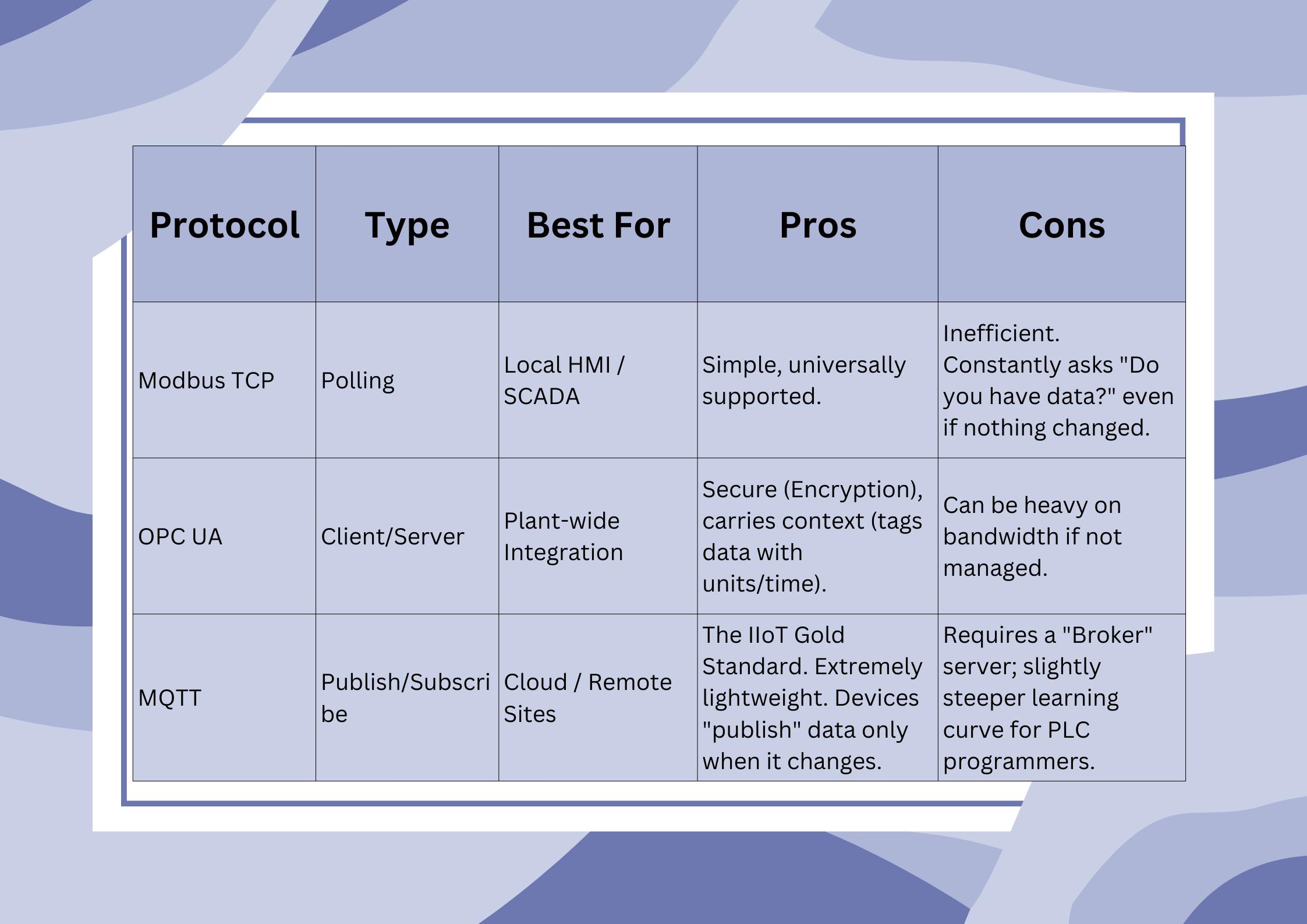

Level 3: The Transport – Communication Protocols
This is the language your system uses to talk to the server or cloud. Selecting the wrong protocol is the #1 cause of network congestion.
Selection Rule of Thumb:
Inside the machine (Real-time control) → Use Profinet / EtherCAT.
Machine to Plant Server (SCADA) → Use OPC UA.
Plant to Cloud / Remote Dashboard → Use MQTT.
Level 4: The Destination – On-Premise vs. Cloud
Where does the data go?
On-Premise Server (Local)
Setup: A physical server rack sitting in your IT room.
Best for: Companies with strict data privacy policies (e.g., Defense, Pharma) or unreliable internet connections.
Advance Engineers Service: We design SCADA systems with local Historians that give you 100% control over your data without a monthly subscription.
Cloud Dashboards (AWS / Azure / Proprietary)
Setup: Data is sent securely over the internet to a cloud platform.
Best for: Multi-site operations. If you have a plant in Mohali and another in Gujarat, the Cloud allows the CEO to view both on a single dashboard on their phone.
Selection: Look for platforms that support “Store and Forward.” If the internet cuts out, the local gateway buffers the data and uploads it automatically when the connection is restored.
Summary Checklist: How to Choose?
When Advance Engineers consults on an IIoT project, we ask these four questions to determine the system “Level”:
Latency: Do you need to know about the data in milliseconds (Motion Control) or minutes (Tank Level)?
Milliseconds = Edge Computing.
Minutes = Cloud Gateway.
Volume: Are we tracking 50 tags or 5,000 tags?
High volume requires MQTT to prevent network crashes.
Environment: Is the hardware going into an air-conditioned IT cabinet or a dusty foundry floor?
Foundry = IP67 Ruggedized Gateways.
Security: Will the IT department allow this device on the corporate network?
If yes, ensure the device supports SSL/TLS encryption (HTTPS).
The Advance Engineers Advantage
Selecting an IIoT system isn’t just about buying a gateway; it’s about architecture. We help you bridge the gap between OT (Operational Technology) and IT (Information Technology). Whether you need a simple IO-Link upgrade for better diagnostics or a full multi-plant MQTT dashboard, we engineer the solution that fits your reality.
Ready to digitize your factory? Let’s start small, scale fast, and measure everything. Contact Advance Engineers today.
In today’s industrial landscape, energy efficiency and cost optimization are critical for maintaining competitiveness and sustainability. For industries relying on combustion processes—such as power plants, refineries, cement kilns, and boilers—precise control of oxygen levels is a game-changer. An Oxygen Analyzer is a powerful tool that helps industries achieve optimal combustion efficiency, reduce fuel consumption, and minimize emissions.
At Advance Engineers, we specialize in Field Instrumentation and Process Automation, empowering industries in Energy, Efficiency, and Automation. Our expertise helps clients across sectors cut costs, enhance productivity, and meet environmental regulations—all while maximizing operational efficiency.
In this blog, we’ll explore:
The role of oxygen analyzers in combustion processes
How they drive fuel savings and operational efficiency
Their impact on emissions reduction and compliance
Real-world benefits for industries
Let’s dive in!
Why Oxygen Levels Matter in Combustion
Combustion is a chemical reaction between fuel and oxygen, producing heat and byproducts like CO₂, water vapor, and, if inefficient, harmful pollutants like CO, NOx, and soot. The air-fuel ratio determines combustion efficiency:
Too much oxygen (excess air): Wastes energy by heating unnecessary air, increasing fuel consumption.
Too little oxygen (incomplete combustion): Leads to unburned fuel, soot formation, and higher emissions.
An Oxygen Analyzer provides real-time, accurate measurements of oxygen levels in flue gases, allowing precise control of the combustion process.
How Oxygen Analyzers Drive Cost Savings
1. Fuel Efficiency & Cost Reduction
Optimal air-fuel ratio: Oxygen analyzers help maintain the ideal stoichiometric ratio, ensuring complete combustion with minimal excess air.
Reduced fuel consumption: Even a 1% reduction in excess air can lead to 1-2% fuel savings—a significant cost reduction for large-scale operations.
ROI within months: Many industries recover the cost of oxygen analyzers within 6-12 months through fuel savings alone.
2. Lower Maintenance & Operational Costs
Prevents soot and corrosion: Incomplete combustion leads to soot buildup in boilers and heat exchangers, increasing maintenance costs. Oxygen analyzers help minimize these issues.
Extends equipment lifespan: By reducing thermal stress and corrosion, analyzers help prolong the life of burners, boilers, and furnaces.
3. Emissions Compliance & Sustainability
Reduces NOx, CO, and particulate emissions: Regulatory bodies worldwide impose strict emissions limits. Oxygen analyzers help industries stay compliant while avoiding fines.
Supports ESG goals: Companies committed to sustainability can reduce their carbon footprint by optimizing combustion efficiency.
Why Choose Advance Engineers?
At Advance Engineers, we don’t just supply instruments—we deliver tailored solutions for energy efficiency and process automation. Our expertise includes:
✅ Cutting-edge oxygen analyzers from leading global brands ✅ Customized integration with your existing control systems ✅ Expert support for installation, calibration, and maintenance ✅ Proven track record in helping industries save millions in fuel costs
We work closely with clients in Energy, Efficiency, and Automation, ensuring that every solution aligns with their operational and sustainability goals.
If you’re looking to cut fuel costs, improve efficiency, and reduce emissions, an Oxygen Analyzer is a smart investment. At Advance Engineers, we’re here to help you maximize savings and operational excellence.
Boiler drum level control is a critical aspect of efficient boiler operation. The boiler drum level refers to the measurement and regulation of water levels within the boiler drum, which is an integral part of the boiler system. Maintaining optimal drum level is crucial as it ensures the safe and efficient production of steam for various industrial processes.
Traditionally, the boiler drum level control was performed manually by operators, who would visually inspect and adjust the water level. However, this manual approach is prone to human error and can lead to inefficiencies and safety hazards. That’s where automation comes into play.
Automating the boiler drum level brings numerous benefits, including improved accuracy, reduced human error, enhanced safety, and optimized energy usage. By leveraging advanced technologies and control systems, automation ensures a precise and continuous monitoring of the water level in the drum.
One of the primary advantages of automating the boiler drum level is accuracy. Automation systems utilize sensors and control algorithms to precisely measure and control the water level. This leads to a highly accurate and responsive control of the boiler drum level, eliminating the guesswork and potential errors associated with manual operation.
Reducing human error is another crucial benefit of automation in boiler drum level control. As mentioned earlier, manual operation is prone to errors, such as misjudging water levels or delayed responses. These errors can lead to inefficiencies, increased fuel consumption, and even safety issues. With automation, the reliance on human judgment is significantly reduced, resulting in improved operational reliability and consistency.
Safety is of utmost importance in any industrial setting, and automation greatly enhances safety in boiler drum level control. Automated systems can quickly detect and respond to abnormal water level conditions, such as low or high levels, and trigger appropriate alarms and corrective actions. By minimizing the potential for human error, automation helps mitigate risks, reducing the likelihood of accidents and equipment damage.
Optimizing energy usage is an additional advantage of automated boiler drum level control. Maintaining the correct water level in the boiler drum is essential for efficient heat transfer and steam generation. Automation systems continuously monitor and adjust the water level, ensuring optimal steam production while minimizing energy wastage. By precisely balancing the water level, these systems help to minimize fuel consumption and associated costs.
Real-life examples from industries that have successfully implemented automation in their boiler systems highlight the benefits of automated drum level control. For instance, a power plant installed an automated boiler drum level control system that resulted in a significant reduction in fuel consumption. By accurately maintaining the desired water level, the plant achieved substantial energy savings, leading to lower operational costs and improved environmental performance.
In terms of long-term cost savings, automated boiler drum level control offers substantial benefits. The enhanced accuracy and efficiency provided by these systems translate into reduced fuel consumption, resulting in long-term cost savings for industries. Additionally, the improved safety and reliability of automated control systems help prevent equipment damage and downtime, further minimizing maintenance and repair costs.
From an environmental perspective, automated drum level control contributes to sustainability efforts by optimizing energy usage. By reducing fuel consumption, automation helps minimize greenhouse gas emissions associated with boiler operations. This proactive approach aligns with global efforts to mitigate climate change and reduce the carbon footprint of industrial processes.
In conclusion, automating the boiler drum level control brings a multitude of benefits to industrial operations. From improved accuracy and reduced human error to enhanced safety and optimized energy usage, automation is a game-changer in efficient boiler operation. Real-life examples and industry practices stand as a testament to the significant energy savings and cost efficiencies that can be achieved through the adoption of automated drum level control systems. Encouraging businesses to consider this technology not only improves their operations but also contributes to a more sustainable and environmentally conscious industry.
In today’s rapidly evolving industrial landscape, sustainability is no longer just a buzzword—it’s a business imperative. Companies across the globe are under increasing pressure to reduce their carbon footprint, comply with environmental regulations, and cut operational costs. One of the most effective ways to achieve all three? Switching from diesel generators to battery storage systems.
At Advance Engineers, we specialize in helping businesses transition to cleaner, smarter, and more cost-effective energy solutions. Battery storage isn’t just an eco-friendly alternative; it’s a game-changer for companies looking to future-proof their operations while saving money.
In this blog, we’ll explore:
The environmental and financial benefits of battery storage.
How battery systems compare to diesel generators in terms of reliability and efficiency.
Real-world examples of businesses that have successfully made the switch.
How Advance Engineers can help you design and implement a customized battery storage solution tailored to your needs.
Why Diesel Generators Are Becoming Obsolete
For decades, diesel generators have been the go-to backup power solution for industries. However, they come with major drawbacks:
1. High Operational Costs
Diesel fuel prices are volatile and often expensive.
Maintenance costs for generators add up over time, including oil changes, filter replacements, and engine overhauls.
2. Environmental Impact
Diesel generators emit CO₂, NOx, and particulate matter, contributing to air pollution and climate change.
Stricter emissions regulations mean compliance risks for businesses still relying on diesel.
3. Noise and Space Constraints
Diesel generators are loud, making them unsuitable for urban or residential areas.
They require dedicated space for installation and fuel storage.
4. Dependence on Fossil Fuels
Relying on diesel means exposure to fuel price fluctuations and supply chain disruptions.
The Battery Storage Advantage
Battery storage systems offer a smarter, cleaner, and more efficient alternative. Here’s why businesses are making the switch:
✅ Cost Savings
No fuel costs—once installed, battery systems run on stored energy, eliminating ongoing fuel expenses.
Lower maintenance—batteries have fewer moving parts, reducing wear and tear.
Long-term ROI—with decreasing battery prices and government incentives, the payback period is shorter than ever.
✅ Environmental Benefits
Zero emissions during operation, helping your business meet ESG (Environmental, Social, and Governance) goals.
Reduced carbon footprint, improving your brand’s sustainability credentials.
✅ Reliability & Efficiency
Instant power—batteries respond faster than diesel generators during outages.
Scalable solutions—easily expand storage capacity as your energy needs grow.
Seamless integration with renewable energy sources like solar and wind.
✅ Energy Independence
Store excess energy during off-peak hours (when electricity is cheaper) and use it during peak demand, cutting utility bills.
Reduce grid dependence and avoid demand charges.
Real-World Success Stories
Many forward-thinking companies have already adopted battery storage with remarkable results:
A manufacturing plant in Gujarat reduced its diesel consumption by 70% after installing a 1 MWh battery system, saving ₹50 lakhs annually in fuel costs.
A commercial complex in Bangalore eliminated backup generator noise and pollution while cutting energy costs by 30%.
A logistics company in Maharashtra achieved net-zero emissions for its warehouse operations by combining solar power with battery storage.
How Advance Engineers Can Help You Transition
At Advance Engineers, we don’t just sell battery systems—we design end-to-end energy solutions that align with your business goals. Here’s how we do it:
1. Customized Energy Assessment
We analyze your current energy usage, peak demand, and sustainability targets to recommend the best battery storage solution.
2. Seamless Integration
Our experts ensure your battery system works flawlessly with existing solar, wind, or grid power.
3. Smart Energy Management
Using AI-driven energy management systems, we optimize battery performance to maximize savings and efficiency.
4. Ongoing Support & Monitoring
Remote monitoring ensures 24/7 reliability, with real-time performance tracking and maintenance alerts.
What’s Holding Your Business Back?
Despite the clear benefits, some businesses hesitate to switch due to: ❌ Upfront costs (though long-term savings outweigh initial investments). ❌ Lack of awareness about battery technology. ❌ Uncertainty about regulatory incentives.
The Future is Green—Are You Ready?
The shift from diesel to battery storage isn’t just a trend—it’s the future of industrial energy. Businesses that act now will: ✔ Save money on fuel and maintenance. ✔ Boost their green credentials and attract eco-conscious customers. ✔ Future-proof their operations against rising energy costs and stricter emissions laws.
CLAMP ON FLOW METER A CUTTING TECHNOLOGY OF FUTURE – Food & Beverages
In today’s highly interconnected world, global competition has intensified across various industries. This is especially true for the food and beverage sector, where the challenges of managing resources are compounded by the ever-increasing costs associated with water consumption and the disposal of wastewater. Given that the food and beverage industry is inherently water-intensive, it becomes essential for companies to engage in continuous monitoring and management of water usage. This not only helps in reducing operational costs but also aligns with growing environmental regulations and consumer expectations regarding sustainability.Flow measurement emerges as a critical component in the manufacturing processes of food and beverages. This measurement is crucial at various stages, from the initial filling of vessels to the precise measurement of ingredients, and even in the control of cleaning processes. In this context, maintaining both quality and hygiene is of utmost importance. The food and beverage industry must adhere to stringent standards that ensure the safety and quality of products, which are paramount for consumer trust and brand integrity. Therefore, effective flow measurement systems are indispensable for ensuring that these standards are met consistently throughout the production cycle.One of the widely recognized practices in this industry is the clean-in-place (CIP) procedure, which is designed to maintain hygiene without disassembling the equipment. These procedures typically utilize demineralized water combined with specialized chemicals that are often costly. These chemicals are essential for effectively removing scale, bacteria, and other debris that can accumulate in process vessels and piping systems. The efficiency of the CIP process significantly impacts overall production efficiency and product safety, making it a crucial focus area for manufacturers.Moreover, the process of changing over from one product to another within the same production line is often governed by strict time-based protocols. This changeover is not merely a logistical necessity but a critical step in ensuring that the new product flows seamlessly while all remnants of the previous product are thoroughly flushed out. This step is vital to prevent cross-contamination and to uphold the quality standards that consumers expect. The effectiveness of this changeover process relies heavily on the accurate and timely measurement of flow rates, ensuring that the transition between products is smooth and efficient.To achieve this, it is imperative to deploy the most appropriate flow meter technology that not only measures flow rates accurately but also incorporates additional factors such as density and acoustic transmission. These capabilities are essential for determining the precise moment when a new product is introduced into the same line, ensuring that the transition is managed effectively. In this context, clamp-on flow meters are particularly well-suited. They offer the advantage of non-intrusive measurement, allowing for easy installation and maintenance while providing reliable data that is crucial for optimizing production processes. Their ability to function effectively in dynamic environments makes them an invaluable tool in the food and beverage industry, where efficiency, accuracy, and hygiene are of paramount concern.
Advance Engineers, a pioneering process automation company, specializes in delivering innovative solutions in the fields of Instrumentation, Automation, and Fire Safety. With a commitment to excellence and a focus on cutting-edge technology, we empower industries to streamline operations, enhance safety, and achieve optimal efficiency. Our expert team is dedicated to providing tailored solutions that meet the unique needs of each client, ensuring seamless integration and reliable performance. To learn more about how we can elevate your operations, reach out to us today via WhatsApp or Email

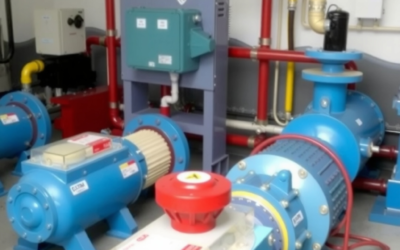

The world’s freshwater resources are under increasing strain. Rising demand and the growing impacts of climate change and inefficient management practices have placed significant pressure on this vital resource.1 For businesses across all sectors, ensuring the efficient use of water is no longer solely an environmental concern; it has become a critical economic imperative.1 Organizations that fail to understand and optimize their water consumption face increasing risks related to water scarcity, higher utility costs, and potential regulatory changes.
A detailed water audit offers a powerful solution, systematically reviewing a business’s water usage to identify inefficiencies and opportunities for significant financial savings.1 By understanding exactly how and where water is consumed within their operations, businesses can take targeted action to reduce their water footprint and lower their utility bills.2 Furthermore, conducting regular water audits can improve operational efficiency, reduce environmental impact, and enhance company’s reputation.2
At the forefront of supporting these water conservation efforts is Advance Engineers, a leading provider of advanced instrumentation and process automation solutions. With expertise in manufacturing high-quality Digital Electromagnetic and Ultrasonic Flow Meters, Advance Engineers is committed to helping businesses around the globe achieve accurate water management and contribute to a more sustainable future.
This comprehensive guide will walk you through the five essential steps to conducting a detailed water audit for your business, empowering you to conserve water, reduce costs, and contribute to a more sustainable future.
Step 1: Laying the Groundwork – Planning and Preparation for a Successful Water Audit
The foundation of a successful water audit lies in meticulous planning and thorough preparation. This initial phase sets the stage for the entire process and ensures that the audit is focused, effective, and yields actionable results.
1.1 Defining the Scope and Objectives:
Before embarking on a water audit, it is crucial to clearly define its scope and establish specific, measurable objectives.4 The scope should delineate the physical boundaries of the audit, specifying the facilities, processes, or areas that will be included.4 For businesses with multiple locations or complex operations, it might be beneficial to start with a pilot audit in a specific area before expanding the scope. Consideration should also be given to whether the audit will encompass all water usage, including that within occupier-leased spaces in addition to owner-controlled areas.4
Equally important is the establishment of clear and specific objectives. These objectives should be SMART – Specific, Measurable, Achievable, Relevant, and Time-bound.5 Examples of objectives could include reducing total water consumption by a certain percentage within a defined timeframe, identifying and quantifying water losses from specific processes, or benchmarking water usage against industry best practices.8 Clearly defined objectives provide a roadmap for the audit team and ensure that the efforts are directed towards achieving tangible and meaningful outcomes.5 For instance, instead of a vague goal like “reduce water usage,” a specific objective could be “reduce water consumption in the cooling tower system by 15% within the next six months”.7 This clarity allows the audit team to focus their data collection and analysis efforts effectively.
1.2 Assembling a Dedicated Water Audit Team:
A water audit is a collaborative effort that benefits from a diverse range of expertise and perspectives. Assembling a dedicated water audit team with representatives from various departments is essential to ensure that all aspects of water usage are considered.9 This multidisciplinary team might include individuals from facilities management, maintenance, operations, finance, and sustainability departments.9 Each member brings unique knowledge and insights into how water is used within their respective areas. Clearly defined roles and responsibilities for each team member are crucial for a smooth and efficient audit process.10
For businesses with limited internal resources or highly complex operations, engaging external water audit experts can provide valuable specialized knowledge and experience.4 These experts can bring an objective perspective and utilize specialized tools and techniques to identify inefficiencies that might be missed by an internal team.11 In some cases, an independent audit conducted by a third party can also enhance the credibility and integrity of the audit findings.14 Regardless of whether the audit is conducted internally or with external support, establishing clear oversight through a forum or committee can help validate outcomes and ensure that recommended actions are appropriately addressed.4
1.3 Gathering Preliminary Information and Resources:
The preparation phase also involves gathering all relevant preliminary information and resources that will be essential for conducting the water audit.3 This includes collecting historical water bills and consumption data for the past several years to establish baseline usage patterns and identify any seasonal fluctuations or anomalies.3 Facility layout maps, plumbing schematics, and equipment manuals are also crucial for understanding the water distribution network and identifying all water-using assets within the facility.3 Information on the number of employees or occupants, their schedules, and details of operational processes that consume water will further contribute to a comprehensive understanding of water usage.13 Existing water management policies, procedures, and any previous water audit reports should also be reviewed to build upon prior efforts and identify areas that may have been previously overlooked.9 Establishing a clear baseline of current water usage during this stage is vital for tracking progress and measuring the effectiveness of water-saving strategies implemented later in the process.9 The thoroughness of this data gathering phase directly impacts the accuracy and effectiveness of the subsequent steps in the water audit.
Step 2: Deep Dive into Usage – Data Collection and Comprehensive Site Assessment
With the planning phase complete, the next step involves a detailed data collection and a comprehensive assessment of the site to gain a thorough understanding of how water is used throughout the business operations.
2.1 Identifying All Water-Consuming Points:
A critical aspect of the site assessment is to meticulously identify every point where water is used within the facility, both indoors and outdoors.11 This requires a detailed walkthrough of the entire premises, paying attention to all fixtures, equipment, and processes that utilize water. Common water-consuming points in businesses span a wide range of applications. Indoors, these include sanitary fixtures such as toilets, faucets, and showers.16 Kitchen and food preparation areas are significant water users, with sinks, dishwashers, and ice machines contributing to consumption.19 Businesses with laundry facilities will need to account for water used by washing machines.19 Heating, ventilation, and air conditioning (HVAC) systems, particularly cooling towers and boilers, often represent major water usage points.16 Industrial processes and manufacturing equipment can also be substantial water consumers, depending on the nature of the business.19 Outdoors, irrigation systems used for landscaping are often a significant source of water consumption.16 Cleaning and maintenance activities, such as washing floors or equipment, also contribute to the overall water footprint.19 Even seemingly minor elements like water features and decorative fountains should be included in the assessment.21 Utilizing smart meters to track water consumption at various points within the facility can provide valuable insights into where water is being used most.22 A comprehensive list of all water-consuming points forms the foundation for a detailed understanding of the business’s water footprint.
2.2 Mapping Water Flow Throughout the Facility:
Once all water-consuming points have been identified, the next step is to trace the path of water as it moves through the facility, from its entry point to its final discharge as wastewater.2 Creating a visual water map or flow diagram can be an extremely helpful tool in this process.2 This diagram should illustrate the network of water pipes, showing how water is distributed to different areas and equipment within the building. It can also highlight any sub-metered systems that are in place, providing a more granular view of water usage in specific zones or for particular processes.11 Mapping the water flow can reveal potential areas of loss, such as long or complex pipe runs that might be prone to leaks or pressure drops. It can also help identify opportunities for water reuse, where water used in one process might be suitable for another application with minimal treatment.2 The standard water balance framework can serve as a valuable tool for quantifying all water uses within the system.25 By visually representing the flow of water, businesses can gain a clearer understanding of the interconnectedness of their water usage and identify potential areas for improvement that might not be apparent from a simple list of consumption points.
2.3 Gathering Relevant Data:
For each identified water-consuming point, it is essential to gather relevant data to quantify its water usage.6 This involves collecting and analyzing historical water bills to understand overall consumption trends and identify any unusual patterns or spikes in usage.6 Data on operational processes that consume water should also be gathered, including flow rates, cycle times, and the volume of water used per unit of production.12 Reviewing manufacturer manuals and equipment specifications for all water-using equipment will provide valuable information on their rated water consumption and help identify opportunities for upgrading to more efficient models.13 Regular readings from the main water meter and any sub-meters installed throughout the facility are crucial for tracking water usage at different points over time.11 Comparing the total water billed with the sum of water used by individual processes, as indicated by meter readings and operational data, can help identify any unaccounted-for water losses. This comprehensive data collection effort provides the necessary information for a thorough analysis of water usage and the identification of areas for potential savings.
2.4 Data Collection Methods:
A variety of methods can be employed to collect the necessary water usage data. The traditional approach involves manual readings and observations, where water meters are read regularly, equipment operation is observed, and any visible leaks or inefficiencies are noted.15 However, advancements in technology have provided more sophisticated and efficient data collection methods. Automated systems and sensors, such as advanced metering infrastructure (AMI), smart meters, flow sensors, and leak detection systems, offer the benefit of real-time monitoring and highly accurate data collection.18 These systems can provide granular data on water consumption patterns and even alert facility managers to unusual spikes in usage that might indicate leaks or other issues. Implementing water usage logs, where employees record water consumption for specific tasks or processes, can also provide valuable insights.10 For verifying the flow rates of specific fixtures, low-tech methods like using flow meter bags or conducting bucket tests with a stopwatch can be employed.15 The choice of data collection methods will depend on the resources available, the complexity of the operations, and the desired level of detail in the water audit.
Step 3: Unveiling the Insights – Analyzing Collected Water Usage Data
Once the data collection phase is complete, the next critical step is to analyze the gathered information to uncover insights into water usage patterns, identify inefficiencies, and pinpoint areas where conservation efforts will be most impactful.
3.1 Calculating Water Usage for Different Processes:
Analyzing the collected data involves calculating the specific water consumption for various business processes, departments, or pieces of equipment.36 This can involve determining water usage per unit of production in a manufacturing facility, water consumption per employee in an office building, or water used per occupied room in a hotel.38 These calculations help to break down overall water consumption into more manageable and understandable components. The concept of a water balance is central to this analysis, as it involves comparing the total volume of water entering the facility with the total volume used for various purposes and the volume discharged as wastewater.17 Any significant discrepancies in the water balance can indicate unaccounted-for water losses, such as leaks or unauthorized usage. Quantifying water usage at this granular level transforms raw data into actionable information, allowing businesses to understand exactly where their water is going and how it is being used.
3.2 Identifying Areas of High Consumption and Potential Inefficiencies:
A key outcome of the data analysis is the identification of areas within the business that consume the largest quantities of water or where water is being used inefficiently.2 By examining the calculated water usage for different processes and comparing it to expected levels or industry benchmarks, businesses can pinpoint these “hotspots” of water consumption.19 For example, in a manufacturing plant, the cooling system might be identified as a high water consumption area.19 In a hotel, laundry operations or irrigation for landscaping could be significant water users.20 Looking for unexplained water flow or usage patterns that deviate from historical data or expected levels can also highlight potential inefficiencies.15 Focusing conservation efforts on these areas of high consumption and potential inefficiency will yield the most substantial water savings and cost reductions for the business.
3.3 Detecting Potential Water Leaks:
The analysis of water usage data plays a crucial role in detecting potential water leaks within the facility.18 One method involves analyzing water meter readings during off-peak hours, when minimal water usage is expected. A significant change in meter readings during these times can indicate a leak somewhere in the system.31 Advanced leak detection devices, such as acoustic sensors that listen for the sound of escaping water or thermal imaging cameras that can identify temperature differences caused by leaks, can also be employed.31 Regular visual and auditory inspections of plumbing fixtures and water-using equipment can also help identify obvious leaks, such as dripping faucets or running toilets.18 Undetected leaks can lead to significant water waste and substantial financial losses over time.31 Implementing a “dry floor policy,” particularly in manufacturing environments, can help quickly identify leaks, as any unexpected wetness on the floor can signal a problem.39 Proactive leak detection and repair is a cost-effective way to reduce water waste and lower utility bills.
3.4 Benchmarking Against Industry Best Practices:
To gain further insights from the analyzed data, businesses should compare their water usage metrics against industry averages or benchmarks for similar facilities.6 This benchmarking process helps to identify areas where the business’s water consumption is significantly higher than its peers, indicating potential for improvement.42 For example, a restaurant can compare its water usage per meal served to the industry average for similar types of restaurants.42 Benchmarking can help businesses set realistic targets for water reduction and prioritize areas where adopting industry best practices could lead to the most significant savings.42 Resources like the AWWA Utility Benchmarking Program and WaterSense for Commercial Buildings offer valuable data and tools for businesses to compare their water usage and identify potential areas for optimization.41
Step 4: From Analysis to Action – Developing and Implementing Effective Water-Saving Strategies
The insights gained from analyzing the water usage data provide the foundation for developing and implementing effective water-saving strategies. This step involves translating the findings into concrete actions that will lead to measurable reductions in water consumption.
Based on the identified areas of high consumption, potential inefficiencies, and leaks, the next step is to brainstorm a comprehensive list of potential water-saving measures.21 This brainstorming session should consider a wide range of solutions, from simple, low-cost behavioral changes to more significant investments in infrastructure upgrades.21 Examples of behavioral changes might include training employees on water-saving practices or implementing policies to minimize water waste. Infrastructure upgrades could involve installing more water-efficient fixtures or implementing water recycling systems. Involving employees from various departments in the brainstorming process can be particularly valuable, as they often have firsthand knowledge of water usage in their specific areas and may have innovative ideas for reducing consumption.52 A broad and inclusive approach to brainstorming will ensure that a diverse range of potential solutions is considered.
4.2 Evaluating Feasibility and Cost-Effectiveness:
Once a list of potential water-saving solutions has been generated, each option needs to be carefully evaluated for its feasibility and cost-effectiveness.3 This evaluation should consider the practicality of implementing the solution within the business’s existing operations, its technical viability, and its potential economic return on investment (ROI).57 Factors to consider include the upfront costs of implementation, the potential for water savings and associated cost reductions, any potential energy savings, ongoing maintenance requirements, and the solution’s alignment with the overall business goals and operations.62 Conducting a cost-benefit analysis for each potential solution will help prioritize the strategies that offer the most significant water savings for a reasonable investment.62 This data-driven approach ensures that the business invests in water-saving measures that are both effective and sustainable in the long run.
4.3 Creating a Detailed Action Plan for Implementation:
With the most feasible and cost-effective water-saving strategies identified, the next step is to develop a detailed action plan for their implementation.10 This action plan should clearly outline the prioritized strategies, define the specific actions that need to be taken for each strategy, assign responsibilities to specific individuals or teams, and establish realistic timelines for completion.10 The plan should also include the metrics that will be used to track progress and measure the success of the implemented measures.53 Securing the necessary resources and budget for the implementation of the action plan is also a crucial step.53 A well-defined action plan provides a clear roadmap for putting the water-saving strategies into practice and ensures that the implementation process is organized and accountable.10
4.4 Exploring Water-Saving Technologies and Practices:
A wide range of water-saving technologies and practices are available to businesses across various industries.21 Implementing low-flow fixtures in restrooms and kitchens, such as toilets, faucets, showerheads, and urinals, can significantly reduce water consumption.21 Upgrading to water-efficient appliances like dishwashers, washing machines, and ice machines can also lead to substantial water savings.21 For businesses with landscaping, installing smart irrigation systems with weather-based controllers, soil moisture sensors, and drip irrigation can optimize water usage.21 Exploring water recycling and reuse systems, such as greywater systems, rainwater harvesting, and closed-loop systems for industrial processes, can further reduce reliance on fresh water sources.21 Investing in leak detection technologies like smart sensors and acoustic sensors can help identify and address leaks promptly.47 In manufacturing and cleaning operations, adopting waterless or low-water processes can minimize water consumption.21 Optimizing cooling systems by using high-efficiency cooling towers or switching to air-cooled systems can also result in significant water savings.21 In addition to these technologies, implementing water conservation practices such as employee training and awareness programs, regular maintenance and prompt repair of leaks, optimizing water pressure, implementing water-saving policies, and adopting water-efficient landscaping (Xeriscaping) are crucial for achieving sustainable water management.21
Implementing water-saving strategies is not the end of the journey. To ensure their ongoing effectiveness and to identify any new opportunities for improvement, it is essential to establish a system for continuous monitoring and regular review of water consumption.
5.1 Establishing a System for Tracking Water Consumption:
After implementing water-saving measures, it is crucial to set up a robust system for ongoing monitoring of water usage.2 This might involve taking regular readings from the main water meter and any sub-meters installed throughout the facility, ideally on a daily, weekly, or monthly basis.11 This data should be meticulously tracked, either in a spreadsheet or using dedicated water management software.17 The use of smart meters and automated monitoring systems can significantly enhance this process by providing real-time data on water consumption patterns and even sending alerts in case of unusual spikes in usage that could indicate new leaks or inefficiencies.2 Utilizing tools like the AWWA Free Water Audit Software can also aid in this ongoing tracking and analysis.43 Establishing a consistent and reliable system for tracking water consumption provides the necessary data to assess the impact of the implemented strategies and identify any new areas that require attention.
5.2 Measuring the Effectiveness of Implemented Changes:
Regularly analyzing the tracked water consumption data is essential for measuring the effectiveness of the implemented water-saving strategies.82 By comparing current water usage data with the baseline data established before the implementation of the water-saving measures, businesses can quantify the actual water savings achieved.17 Monitoring key performance indicators (KPIs) related to water usage, such as water consumption per unit of production, per employee, or per square foot, will also help assess the impact of the changes.32 This data-driven evaluation provides concrete evidence of the success of the water conservation efforts and helps justify any further investments in sustainability initiatives.87 Furthermore, it allows businesses to identify any strategies that are not performing as expected and may require adjustments.
5.3 Making Adjustments as Needed:
The process of monitoring and reviewing water consumption data should not be a passive exercise. It is crucial to regularly analyze the data and make necessary adjustments to the implemented water-saving strategies to optimize their performance over time.53 This might involve fine-tuning the settings of water-efficient equipment, modifying operational procedures based on the observed usage patterns, or even exploring and implementing new water-saving technologies as they become available.55 It is important to recognize that water auditing and conservation are not one-time events but rather an ongoing process of continuous improvement.2 By maintaining a proactive approach to monitoring and making adjustments as needed, businesses can ensure that their water conservation efforts remain effective and adapt to any changes in their operations or the availability of new technologies.
Advance Engineers: Your Partner in Achieving Water Efficiency through Advanced Instrumentation
Advance Engineers stands as a recognized leader in the field of Field Instrumentation and Process Automation, committed to providing cutting-edge solutions for industrial efficiency and sustainability.90 Specializing in the manufacturing of high-quality Digital Electromagnetic and Ultrasonic Flow Meters, Advance Engineers empowers businesses to gain precise control over their water usage.90
Their Digital Electromagnetic Flow Meters are engineered to deliver accurate and reliable measurement of conductive liquids, making them indispensable tools for quantifying water consumption across various industrial processes.93 These meters provide the essential data needed to understand exactly how much water is being used in different applications, from process control to wastewater management.
Advance Engineers’ Ultrasonic Flow Meters offer a versatile solution for measuring the flow of a wide range of liquids and gases, including non-conductive fluids.92 A significant advantage of ultrasonic flow meters is their ability to often be installed without the need to cut into existing pipelines, making them ideal for conducting water audits in diverse and sensitive applications.92 This non-intrusive nature minimizes disruption to operations while providing accurate flow measurements.
The accurate and reliable flow data provided by Advance Engineers’ Digital Electromagnetic and Ultrasonic Flow Meters is crucial for every step of a detailed water audit.16 From establishing a baseline of water consumption during the initial data collection phase to identifying areas of high usage and tracking the effectiveness of water-saving initiatives in the monitoring phase, these flow meters provide the essential insights needed to make informed decisions about water management.103
Advance Engineers is more than just a manufacturer; they are a dedicated partner committed to helping businesses achieve their water conservation goals. Their expertise in field instrumentation and process automation, coupled with their high-quality flow meter products, makes them an invaluable resource for businesses looking to implement effective water management strategies.
Conclusion: Embrace Water Audits for a Sustainable and Profitable Future
Conducting a detailed water audit is no longer a luxury but a necessity for businesses striving for sustainability and profitability in an increasingly water-constrained world.1 The benefits extend beyond mere cost savings, encompassing improved operational efficiency, a stronger commitment to environmental responsibility, an enhanced brand reputation among stakeholders, and ensuring compliance with evolving regulations.1 By viewing water audits as an ongoing process, businesses can cultivate a culture of continuous improvement in water efficiency.25 Advance Engineers stands ready to support your business in this crucial endeavor with their innovative products and comprehensive expertise.
Call to Action: Take the Next Step Towards Water Efficiency with Advance Engineers
Ready to take control of your business’s water usage, reduce your operational costs, and contribute to a more sustainable future? Contact Advance Engineers today to learn more about conducting a detailed water audit for your business and discover how our advanced Digital Electromagnetic and Ultrasonic Flow Meters can provide the accurate data you need to achieve your water conservation goals.
Ask for a callback to discuss your specific needs with our team of experts.
Connect with us via WhatsApp at [Insert WhatsApp Link Here] for a quick consultation.
Send us an email by clicking on this link: [Insert Email Link Here] to request more information about our water audit solutions and flow meter products.
Let Advance Engineers be your trusted partner in your journey towards water efficiency.
Key Tables:
Table 1: Common Water-Consuming Points in Businesses
The Water-Saving Strategies Assessment (WSSA) Framework: An Application for the Urmia Lake Restoration Program – MDPI, accessed April 6, 2025, https://www.mdpi.com/2073-4441/12/10/2789
