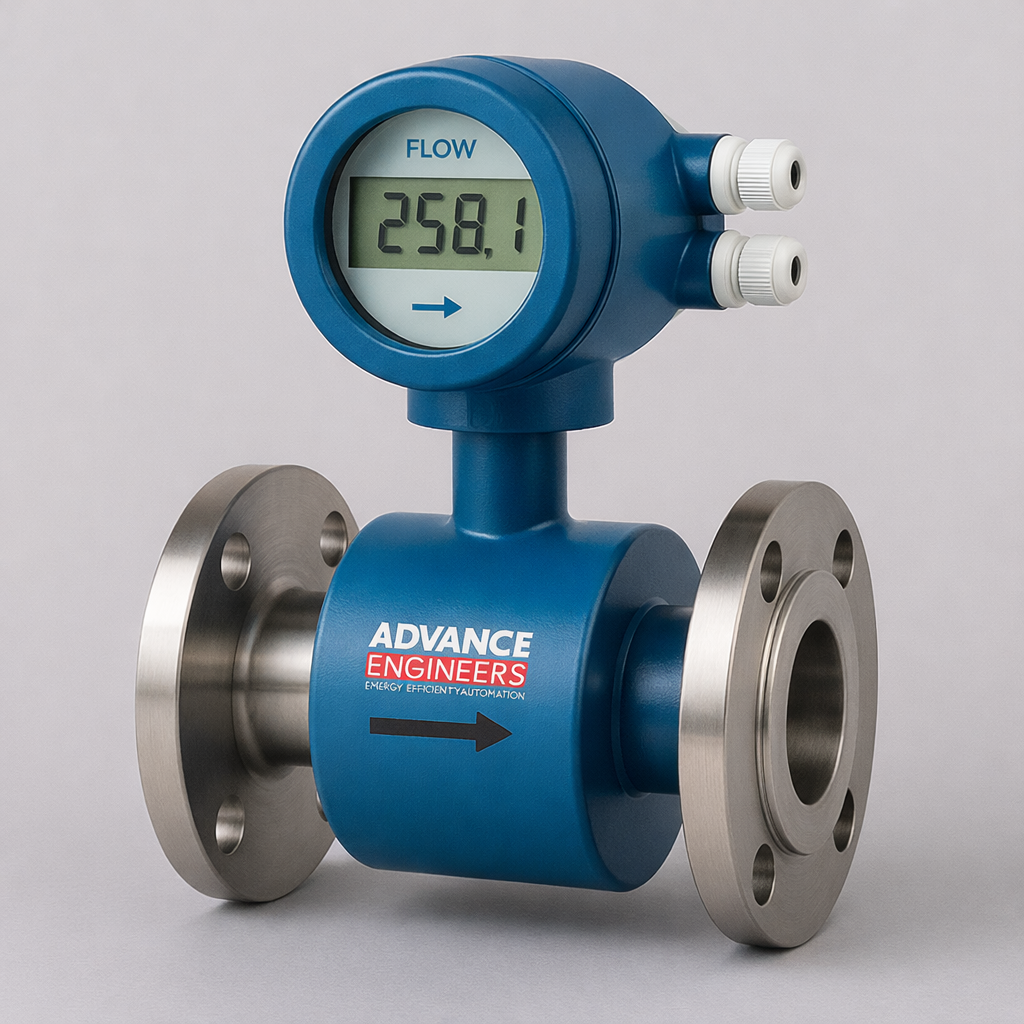

High Accuracy Electromagnetic Flow Meter
for Water, Pharma & Process Industries
Zero Pressure Drop | ±0.2% Accuracy | DN10–DN3000 | Integral & Remote Type
📧 Send Email Enquiry
Why Choose Advance Engineers Electromagnetic Flow Meter?
- Based on Faraday's Law of Electromagnetic Induction for accurate measurement
- No moving parts ensure reliability and minimal maintenance
- Zero pressure drop across the meter – energy efficient operation
- Extended service life with robust construction
- High accuracy options: ±0.5%, ±0.3%, or ±0.2% to suit your application
- Wide measuring range of 1500:1 for versatile applications
- Handles flow velocities exceeding 15 m/s
- Suitable for conductive liquids with conductivity >5 µS/cm
High Accuracy
±0.2% accuracy for precision measurement
No Moving Parts
Reliable operation with minimal wear
Long Service Life
Durable construction for years of service
Digital Output
4-20mA / RS485 / Modbus integration

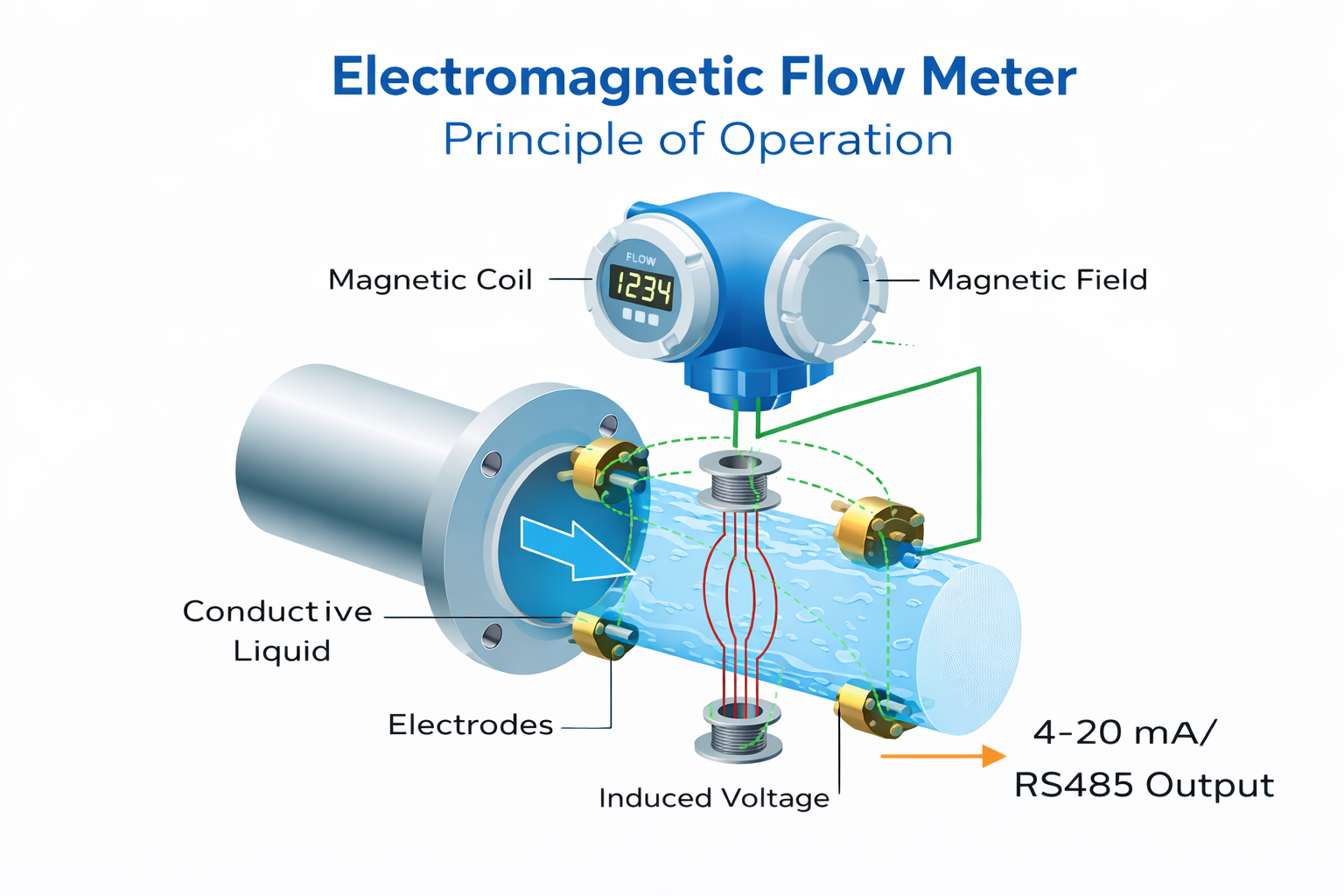

How It Works
Operating Principle
1
Magnetic Field Generation: Electromagnetic coils generate a uniform magnetic field perpendicular to the flow direction.
2
Conductive Flow: The conductive liquid flows through the magnetic field, acting as a conductor.
3
Voltage Induction: A voltage is induced proportional to the flow velocity (Faraday's Law: E = B × D × V).
4
Signal Detection: Electrodes positioned on the pipe wall detect the induced voltage.
5
Signal Processing: The transmitter converts the voltage signal into standardized 4–20mA or RS485 digital output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Nominal Diameter | DN10 – DN3000 mm |
| Nominal Pressure | 0.6 – 4.0 MPa |
| Accuracy Class | ±0.5%, ±0.3%, ±0.2% |
| Measuring Range | 1500:1 (Turndown Ratio) |
| Flow Velocity | >15 m/s maximum |
| Medium Conductivity | >5 µS/cm minimum |
| Output Signal | 4-20mA, Pulse, RS485, Modbus RTU/TCP |
| Power Supply | 220VAC / 24VDC / Battery powered |
| Protection Class | IP65 / IP68 (Submersible option) |
| Medium Temperature | -20°C to +180°C (depends on liner) |
| Ambient Temperature | -20°C to +60°C |
Liner Materials
| Material | Application & Temperature Range |
|---|---|
| PTFE (Teflon) | Universal liner – Acids, alkalis, organic solvents | -30°C to +180°C |
| PFA | High purity applications, pharmaceutical, food grade | -30°C to +180°C |
| F46 | Similar to PTFE, better mechanical strength | -30°C to +180°C |
| Neoprene (CR) | Water, wastewater, neutral solutions | -20°C to +80°C |
| Polyurethane (PU) | Abrasive slurries, mining applications | -10°C to +60°C |
Electrode Materials
| Material | Application |
|---|---|
| Stainless Steel 316L | Water, wastewater, mild chemicals |
| Hastelloy B | Hydrochloric acid, non-oxidizing acids |
| Hastelloy C | Mixed acids, oxidizing and reducing media |
| Titanium | Seawater, chlorine solutions, oxidizing acids |
| Platinum-Iridium | Highly corrosive media, high purity applications |
| Tungsten Carbide | Abrasive slurries, paper pulp |
Structure Types
| Type | Description |
|---|---|
| Integral Type | Sensor and transmitter combined in single unit – compact design |
| Remote Type | Sensor and transmitter separated – for high temperature or difficult access locations |
| Submersible Type | Fully submersible sensor (IP68) – for open channel and underwater applications |

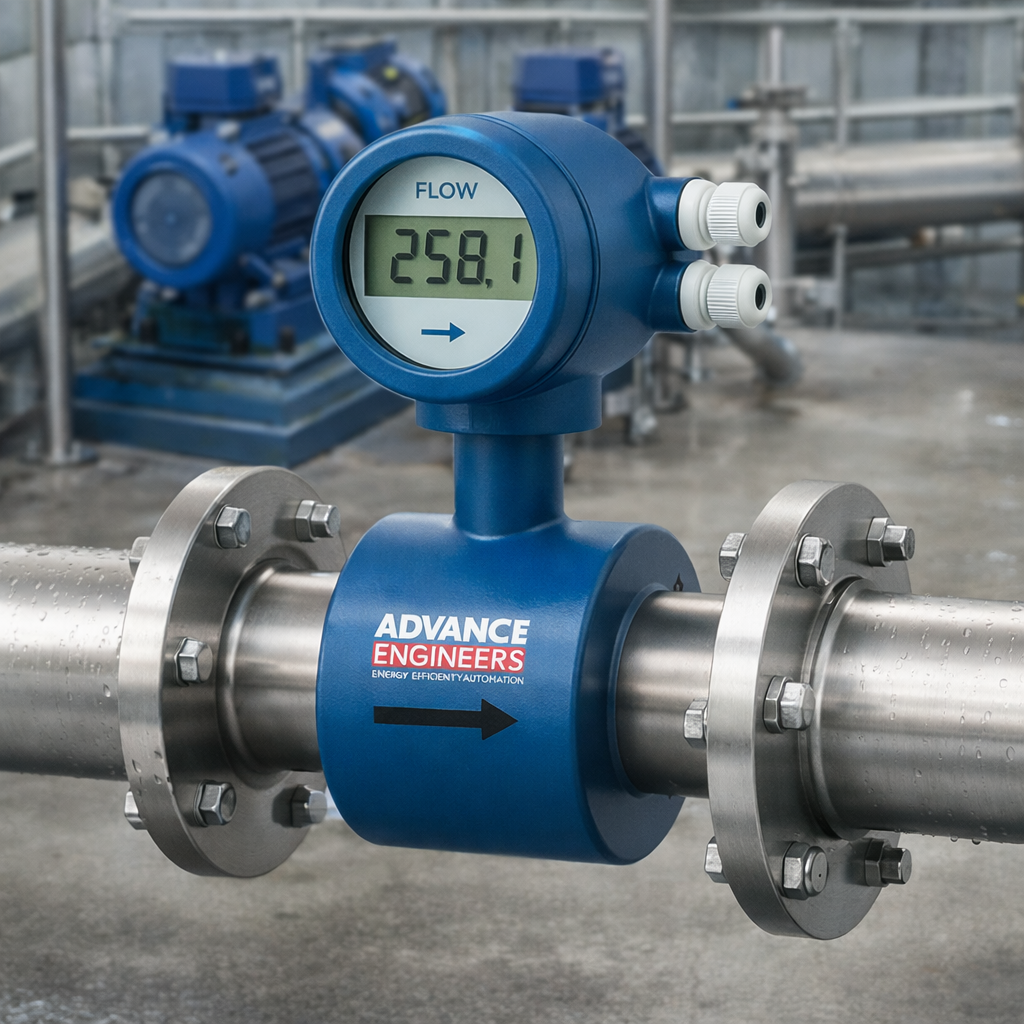

Installation Guidelines
Critical Installation Requirements:
- Meter must remain completely full of liquid during operation
- Install with minimum 5D straight pipe upstream
- Install with minimum 3D straight pipe downstream
- Avoid installation near elbows, tees, or valves
- Install away from sources of vibration
- Ensure proper grounding to prevent interference
- For vertical installation, ensure upward flow direction
- Avoid locations with air entrapment or negative pressure
Applications
💧 Water Treatment
🏭 Wastewater Management
💊 Pharma Utilities
🍽️ Food & Beverage
🧪 Chemical Processing
♻️ Effluent Systems
🌾 Irrigation Systems
🏗️ Mining & Slurry
🔬 Laboratory Applications
⚡ Power Plants
📦 Pulp & Paper
🎨 Paint & Coating
Download Technical Datasheet
Get detailed specifications, dimensions, and selection guide
📥 Download Complete Datasheet (PDF)Includes: Full specifications, wiring diagrams, dimension drawings, and selection guide
